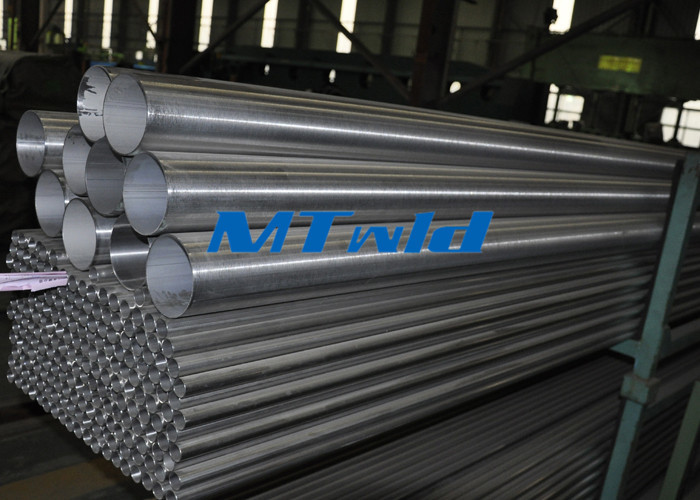

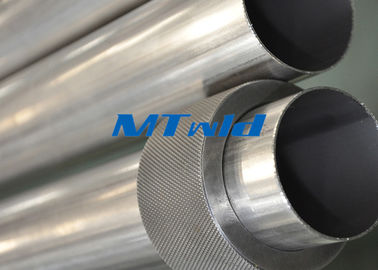

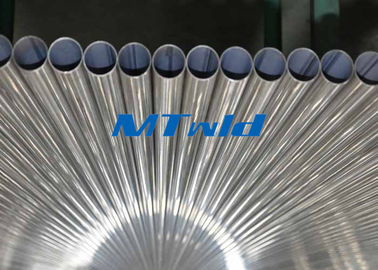

0.25mm - 28mm Wall Thickness Stainless Steel Welded Tube For Boiler / Gas Transport

جزئیات محصول:
Place of Origin: CHINA
نام تجاری: MTSCO
گواهی: ISO 9001 & PED & AD2000
Model Number: MTSCOSSWT15
پرداخت:
Minimum Order Quantity: negotiable
قیمت: 2500-12000USD/TON
Packaging Details: Plywood Case / Bundles
Delivery Time: 25 Days
Payment Terms: T / T ; L / C
Supply Ability: 500 Tons / Month

اطلاعات تکمیلی

ماده: TP304 TP304L TP316 TP316L، 1.4306 / 1.4404 سطحی: 320 # و یا 400 # خارج از جلا
شرایط تحویل: نرم سخت تایپ کنید: جوش داده شده
روش فرایند: ERW، EFW و غیره تست PMI: 100%
برجسته:

welded stainless steel tubing,welding round tube

,

welding round tube

توضیحات محصول

ASTM A249 1.4306 / 1.4404 Stainless Steel Welded Tube For Boiler



ASTM A249 Standard :



Size OD Nominal Wall Outside Diameter Length Wall
1/2" (12.7) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
3/4" (19.1) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
1" (25.4) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
1-1/2" (38.1) 0.065" (1.65)/0.049" (1.25) +/-0.008" (0.20) +1/8" (3.18) - 0 +/-10.0%
2" (50.8) 0.065" (1.65)/0.049" (1.25) +/-0.008" (0.20) +1/8" (3.18) - 0 +/-10.0%
2-1/2" (63.5) 0.065" (1.65) +/-0.010" (0.25) +1/8" (3.18) - 0 +/-10.0%
3" (76.2) 0.065" (1.65) +/-0.010" (0.25) +1/8" (3.18) - 0 +/-10.0%
4" (101.6) 0.083" (2.11) +/-0.015" (0.38) +1/8" (3.18) - 0 +/-10.0%
6" (152.4) 0.083" (2.11) +/-0.030" (0.76) +1" (25.4) - 0 +/-10.0%
6" (152.4) 0.109" (2.77) +/-0.030" (0.76) +1" (25.4) - 0 +/-10.0%
8" (203.2) 0.109" (2.77) +0.061" (1.55)/-0.031" (0.79) +1" (25.4) - 0 +/-10.0%



Item Description
Basic Information Material Grade TP304, TP304L, TP304H, TP316, TP316L, TP316Ti, TP309S, TP310S, TP321, TP321H, TP347, TP347H, etc
Outer Diameter 5.80mm-2032mm (0.23" to 80")
Wall Thickness 0.25mm-28mm (0.01" to 1.125")
Length Normally fixed length 6m, can as per customer’s requirement
Standard ASTM A312; ASTM A269; ASTM A789; ASTM A790 ect.
Process Method ERW, EFW etc
Industry & Advantage Application a) For fluid and gas transport
b) Structure and machining
c) Heat exchanger pipes etc
Advantages a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
Terms & Conditions Price Item FOB, CFR, CIF or as negotiation
Payment T/T, LC or as negotiation
Delivery Time 30 working days after received your deposit (Normally according to the order quantity)
Package Iron case; woven bag or as per customer’s requirement
Quality Requirement Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable
Quality Test X-ray, Size test, Length test
Chemical Analysis(Photoelectric Emission Spectroscopic) etc
Market Main Market Europe, Middle East, Southeast Asia, South America. Etc



0.25mm - 28mm Wall Thickness Stainless Steel Welded Tube For Boiler / Gas Transport 0
