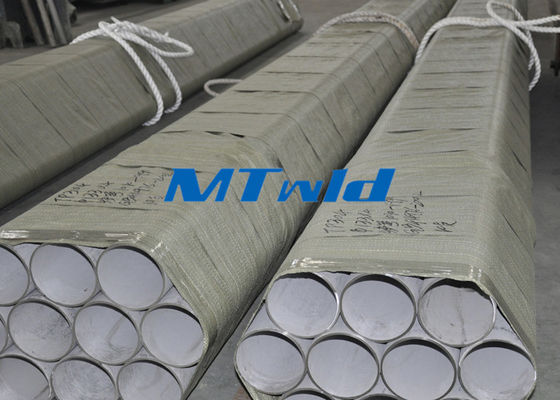

TP 321 / 317 Stainless Steel Welded Pipe Fluid Transportation Seamless Welded Pipe

Minimum Order Quantity : negotiable قیمت : 2400-12000USD/TON
Packaging Details : Plywood Case / Bundles Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 500 Tons / Month
Place of Origin: CHINA نام تجاری: MTSCO
گواهی: ISO 9001 & PED & AD2000 Model Number: MTSCOSSSP25

اطلاعات تکمیلی

Material: TP321 / 317 / 347 / 347H, 300 Series Stainless Steel Type: Welded
NDT: Eddy current or Hydraulic test Inspection: 100%
Surface: Pickling & Annealing Process: ERW , EFW Etc
برجسته:

welded stainless steel pipe

,

welded stainless steel pipes

توضیحات محصول

DN40 48.3mm TP321 / 317 Stainless Steel Welded Pipe For Fluid Transportation

Standard:

ASTM A269 - 10 : Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
ASTM A312 / A312M - 12 : Standard Specification for Seamless , Welded , and Heavily Cold Worked Austenitic Stainless Steel Pipes
ASTM A789 / A789M - 10a : Standard Specification for Seamless and Welded Ferritic / Austenitic Stainless Steel Tubing for General Service
ASTM A790 / A790M - 11 : Standard Specification for Seamless and Welded Ferritic / Austenitic Stainless Steel Pipe



Application:

a) For fluid & gas transport

b) Structure & machining etc



Advantages:

a) Advanced technology of cold draw machine

b) Advanced annealing machine

c) Better mechanical property

d) More precise dimension

e) Perfect inspection method and inspection equipment etc



Specifications :



DN NPS(Inch) D(mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.30 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.70 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.10 - 1.65 2.31 2.31 2.31 3.20 3.20 3.20 - -
15 1/2 21.30 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.70 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.40 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
32 1 1/4 42.20 1.65 2.77 3.56 3.56 3.56 4.85 4.85 4.85 6.35 9.70
40 1 1/2 48.30 1.65 2.77 3.68 3.68 3.68 5.08 5.08 5.08 7.14 10.15
50 2 60.30 1.65 2.77 3.91 3.91 3.91 5.54 5.54 5.54 8.74 11.07
65 2 1/2 73.00 2.11 3.05 5.16 5.16 5.16 7.01 7.01 7.01 9.53 14.02
80 3 88.90 2.11 3.05 5.49 5.49 5.49 7.62 7.62 7.62 11.13 15.24


TP 321 / 317 Stainless Steel Welded Pipe Fluid Transportation Seamless Welded Pipe
