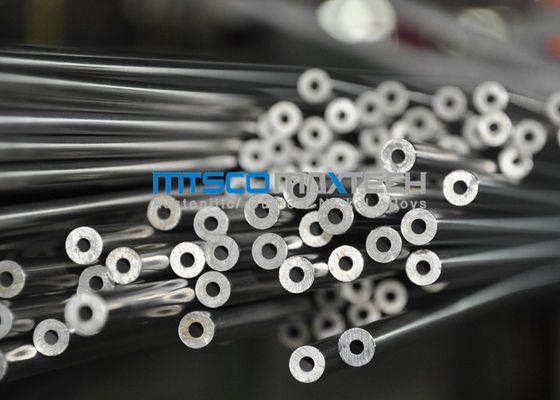

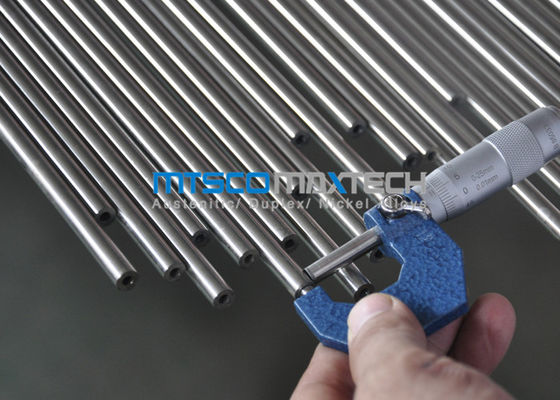

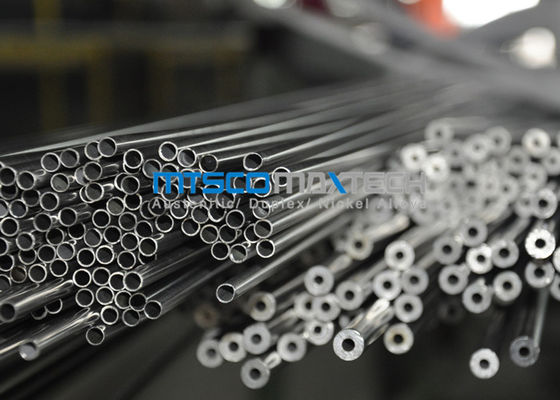

304L / 1.4306 Stainless Steel Instrument Tubing Size 12.7*1.65mm
Material Grade :
| American Standard |
TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L Etc |
| European Standard |
1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 Etc |
| German Standard |
X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc |
Chemical Composition :
ASTM A213 Standard :
| Elements |
304L(wt%) S30403 |
304(wt%) S30400 |
316L (wt%) S31603 |
316 (wt%) S31600 |
| (C) Carbon, max |
0.035 |
0.08 |
0.035 |
0.08 |
| (Mn) Manganese, max |
2 |
2 |
2 |
2 |
| (P) Phosphorus, max |
0.045 |
0.045 |
0.045 |
0.045 |
| (S) Sulfur, max |
0.03 |
0.03 |
0.03 |
0.03 |
| (Si) Silicon, max |
1 |
1 |
1 |
1 |
| (Ni) Nickel |
8.0 - 12.0 |
8.0 - 11.0 |
10.0 - 14.0 |
10.0 - 14.0 |
| (Cr) Chromium |
18.0 - 20.0 |
18.0 - 20.0 |
16.0 - 18.0 |
16.0 - 18.0 |
| (Mo) Molybdenum |
N/A |
N/A |
2.0 - 3.0 |
2.0 - 3.0 |
| (Fe) Iron |
Bal. |
Bal. |
Bal. |
Bal. |
| (Cu) Copper |
N/A |
N/A |
N/A |
N/A |
| (N) Nitrogen |
N/A |
N/A |
N/A |
N/A |
Applications :
1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )
2 . Fluid , gas and oil transport
3 . Pressure and heat transmission
4 . Construction and ornament
5 . Boiler and heat exchangers
6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) Etc
Advantages:
a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
Price Item:FOB , CFR , CIF or as negotiation
Payment:T/T, LC or as negotiation
Delivery Time :30 working days after received your deposit ( Normally according to the order quantity )
Package:Iron case ; woven bag or as per customer’s requirement
Quality Requirement:Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable
Test:
NTD ( Ultrasonic test , Eddy Current test )
Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
Metal Test ( Metallographic Analysis , Impact Test - High / low temperature )
Chemical Analysis ( Photoelectric Emission Spectroscopic )
