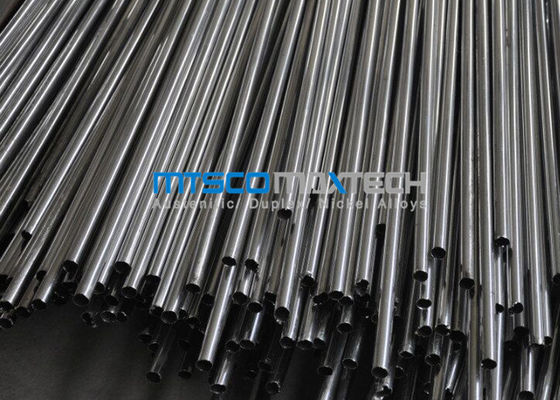

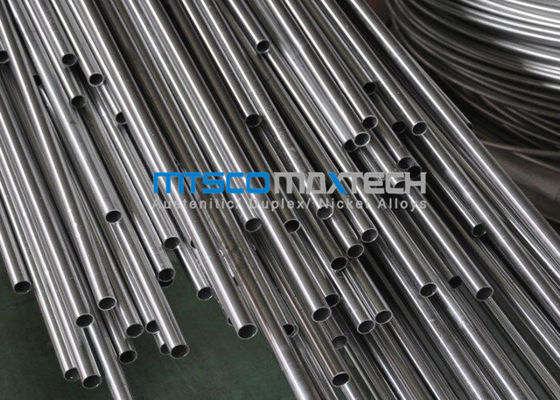

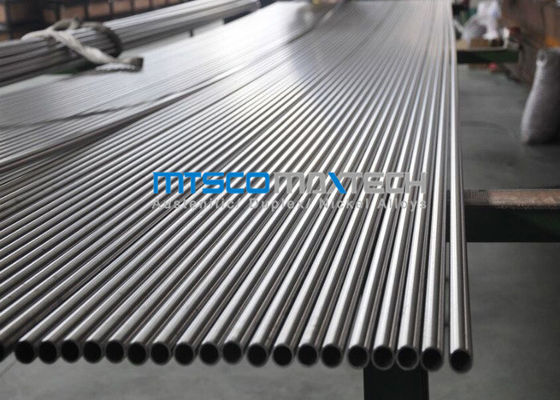

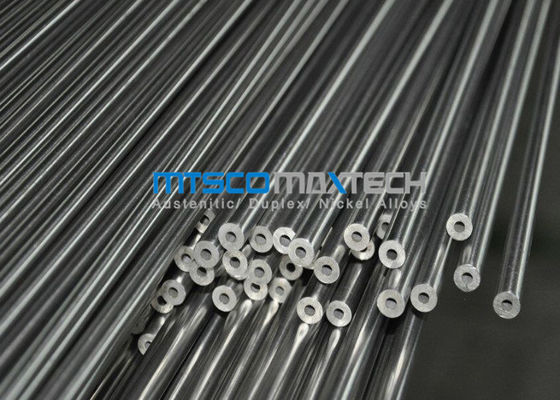

S30908 / S31008 Stainless Steel Hydraulic Tubing Size 9.53*8 BWG With Bright Annealed Surface

Minimum Order Quantity : negotiable قیمت : 4300-9800USD/TON
Packaging Details : Iron Case / Plywood Case Delivery Time : 30 Days
Payment Terms : T / T ; L / C Supply Ability : 300 Tons / Month
Place of Origin: CHINA نام تجاری: MTSCO
گواهی: ISO 9001 & PED & AD2000 Model Number: MTSCOHT25

اطلاعات تکمیلی

Material: 300 Series Stainless Steel Surface: Polished 400 # 320 # Etc
Type: Seamless NDT: Eddy Current Or Hydraulic Test
Inspection: 100% Technology: Cold Drawn / Cold Rolled
برجسته:

hydraulic pipe,Hydraulic Seamless Tube

,

Hydraulic Seamless Tube

توضیحات محصول

S30908 / S31008 Stainless Steel Hydraulic Tubing Size 9.53*8 BWG With Bright Annealed Surface





Material Grade :



American Standard TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L , S31803 Etc
European Standard 1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 , 1.4462 Etc
German Standard X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc





Applications :



1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )

2 . Fluid , gas and oil transport

3 . Pressure and heat transmission

4 . Construction and ornament

5 . Boiler heat exchangers

6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) boiler , auto parts , medical equipment , building materials , food industry



Birmingham Wire Gauge BWG
  Wall Thickness   Wall Thickness
BWG IN MM BWG IN MM
0 0.340 8.64 19 0.042 1.07
1 0.300 7.62 20 0.035 0.89
2 0.284 7.21 21 0.032 0.81
3 0.259 6.58 22 0.028 0.71
4 0.238 6.05 23 0.025 0.64
5 0.220 5.59 24 0.022 0.56
6 0.203 5.16 25 0.020 0.51
7 0.180 4.57 26 0.018 0.46
8 0.165 4.19 27 0.016 0.41
9 0.148 3.76 28 0.014 0.36
10 0.134 3.40 29 0.013 0.33
11 0.120 3.05 30 0.012 0.30
12 0.109 2.77 31 0.010 0.25
13 0.095 2.41 32 0.009 0.23
14 0.083 2.11 33 0.008 0.20
15 0.072 1.83 34 0.007 0.18
16 0.065 1.65 35 0.005 0.13
17 0.058 1.47 36 0.004 0.10
18 0.049 1.24





Specification :



DN NPS(Inch) D(mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.30 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.70 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.10 - 1.65 2.31 2.31 2.31 3.20 3.20 3.20 - -
15 1/2 21.30 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.70 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.40 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
32 1 1/4 42.20 1.65 2.77 3.56 3.56 3.56 4.85 4.85 4.85 6.35 9.70
40 1 1/2 48.30 1.65 2.77 3.68 3.68 3.68 5.08 5.08 5.08 7.14 10.15
50 2 60.30 1.65 2.77 3.91 3.91 3.91 5.54 5.54 5.54 8.74 11.07
65 2 1/2 73.00 2.11 3.05 5.16 5.16 5.16 7.01 7.01 7.01 9.53 14.02
80 3    88.90 2.11 3.05 5.49 5.49 5.49 7.62 7.62 7.62 11.13 15.24
90 3 1/2 101.60 2.11 3.05 5.74 5.74 5.74 8.08 8.08 8.08 - -
100 4    114.30 2.11 3.05 6.02 6.02 6.02 8.56 8.56 8.56 13.49 17.12
125 5    141.30 2.77 3.40 6.55 6.55 6.55 9.53 9.53 9.53 15.88 19.05
150 6    168.30 2.77 3.40 7.11 7.11 7.11 10.97 10.97 10.97 18.26 21.95
200 8    219.10 2.77 3.76 8.18 8.18 8.18 12.70 12.70 12.70 23.01 22.23
250 10    273.10 3.40 4.19 9.27 9.27 9.27 15.09 12.70 12.70 28.58 25.40



S30908 / S31008 Stainless Steel Hydraulic Tubing Size 9.53*8 BWG With Bright Annealed Surface 0



MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .

Stainless steel seamless bright annealed tube’s final surface is polished and bright annealed . And the polished grade is includes 180 # , 320 # , 400 # , 600 # , 800 # . According to standard very strictly , tubes which produced by us always have correct OD and WT tolerance . At fluid industry , bright annealed hydraulic tubing has its own important position . Their useful life is higher than other tubing .
