ASTM A213 S34700 / 34709 1 / 4 Inch Stainless Steel Sanitary Tubing For Food Industry

چین ASTM A213 S34700 / 34709 1 / 4 Inch Stainless Steel Sanitary Tubing For Food Industry تامین کننده
ASTM A213 S34700 / 34709 1 / 4 Inch Stainless Steel Sanitary Tubing For Food Industry تامین کننده ASTM A213 S34700 / 34709 1 / 4 Inch Stainless Steel Sanitary Tubing For Food Industry تامین کننده ASTM A213 S34700 / 34709 1 / 4 Inch Stainless Steel Sanitary Tubing For Food Industry تامین کننده ASTM A213 S34700 / 34709 1 / 4 Inch Stainless Steel Sanitary Tubing For Food Industry تامین کننده

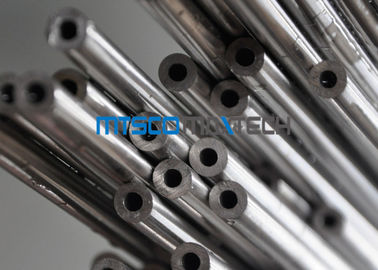

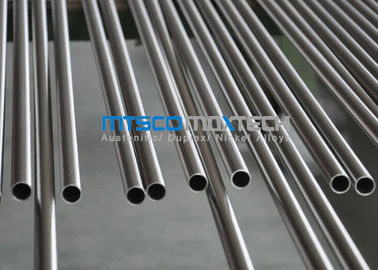

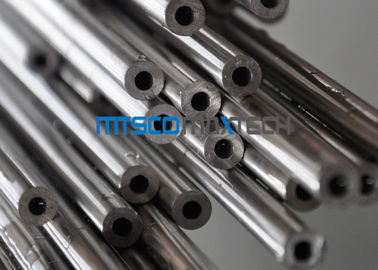

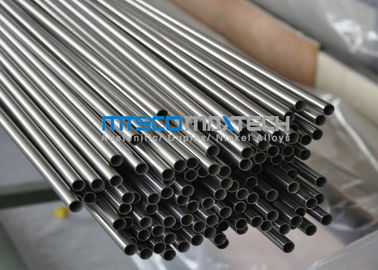

تصویر بزرگ :  ASTM A213 S34700 / 34709 1 / 4 Inch Stainless Steel Sanitary Tubing For Food Industry

جزئیات محصول:

Place of Origin: CHINA
نام تجاری: MTSCO
گواهی: ISO 9001 & PED & AD2000
Model Number: MTSCOST30

پرداخت:

Minimum Order Quantity: negotiable
قیمت: negotiable
Packaging Details: Iron Case
Delivery Time: 30 Days
Payment Terms: T / T ; L / C
Supply Ability: 300 Tons / Month
Contact Now
توضیحات محصول جزئیات
Material: Stainless Steel 300 Series Technology: Cold Drawn / Cold Rolled
Surface: Bright Annealed Delivery Condition: Soft / Hard
Inspection: 100% Type: Seamless

ASTM A213 S34700 / 34709 1 / 4 Inch Stainless Steel Sanitary Tubing For Food Industry


Product Description:



Outer Diameter 3.18-101.6mm
Wall Thickness 0.5-20mm
NPS 1/8"-24"
Schedule 5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S
Material Grade 304/304L/316/316L/321/309S/310S, etc
Standard ASTM A269, ASTM A213, etc
Application used in Fluid and Gas Transport, Structure and Machining,etc
Certificates ISO9001:2008, PED, BV
Process Method Cold Drawn/ Cold Rolled
Surface Finish Annealed/ Polished
Package Woven bag for each piece, then packed in seaworthy wooden cases
Delivery Time 20-60 Days after receiving the deposit (Normally according to the order quantity)
Price Item FOB, CIF or as negotiation
Payment T/T(30% in advance, 70% against the BL Copy) or as negotiation
Quality Requirement Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable
Main Market Europe, Middle East, Southeast Asia, South America, etc


Application :

1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )
2 . Fluid , gas and oil transport
3 . Pressure and heat transmission
4 . Construction and ornament
5 . Boiler and heat exchangers
6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium )





Chemical Composition



  C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0   0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75


ASTM A213 S34700 / 34709 1 / 4 Inch Stainless Steel Sanitary Tubing For Food Industry
