3 / 4 Inch UNS S32750 / S32760 Duplex Stainless Steel Tubing With Cold Rolled

چین 3 / 4 Inch UNS S32750 / S32760 Duplex Stainless Steel Tubing With Cold Rolled تامین کننده
3 / 4 Inch UNS S32750 / S32760 Duplex Stainless Steel Tubing With Cold Rolled تامین کننده 3 / 4 Inch UNS S32750 / S32760 Duplex Stainless Steel Tubing With Cold Rolled تامین کننده 3 / 4 Inch UNS S32750 / S32760 Duplex Stainless Steel Tubing With Cold Rolled تامین کننده 3 / 4 Inch UNS S32750 / S32760 Duplex Stainless Steel Tubing With Cold Rolled تامین کننده

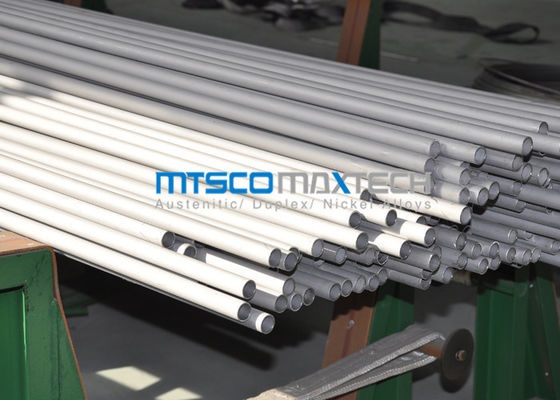

تصویر بزرگ :  3 / 4 Inch UNS S32750 / S32760 Duplex Stainless Steel Tubing With Cold Rolled

جزئیات محصول:

Place of Origin: CHINA
نام تجاری: MTSCO
گواهی: ISO 9001 & PED & AD2000
Model Number: MTSCODST32

پرداخت:

Minimum Order Quantity: negotiable
قیمت: negotiable
Packaging Details: Iron Case / Plywood Case
Delivery Time: 30 Days
Payment Terms: T/T ; L/C
Supply Ability: 300 Tons / Month
Contact Now
توضیحات محصول جزئیات
Material: UNS S32750 / S32760 Type: Seamless
Standard: ASTM A790 / ASTM A789 NDT: Eddy Current Or Hydraulic Test
Inspection: 100 % Length: 6096mm

3 / 4 Inch UNS S32750 / S32760 Duplex Stainless Steel Tube With Cold Rolled



ASTM A790 2507 duplex steel pickling tube are always purchased by the clients who need high corrosion tubes .

Compared to stainless steel tubes , duplex steel tubes have more higher corrosion ability . They can be used in sea industry .





Item

Description

Basic Information

Material Grade

 S32205 , S31803 , S32304 , S32750 , F51 , F53 , 2205 , 2507 etc

Outer Diameter

3.18mm - 101.6mm

Wall Thickness

0.5mm - 20mm

Length

Normally fixed length 6m , can as per customer’s requirement

Standard

ASTM A789 ; ASTM A790 ; EN 10216-5 ect .

Process Method

Cold Drawn or Cold Rolled



Application

a) Petroleum

b) Chemical industry

c) Instrument

d) Industrial transportation

e) Mechanical structure industry

f) Need high corrision ability pipe's industry, such as offshore industry etc

Advantages

a) Superior surface finish,

b) Better mechanical property

c) More precise dimension

d) Perfect inspection method and inspection equipment



   Super duplex Stainless Steel is a highly alloyed , good performance duplex steel with a pitting resistance . Super Duplex offers good resistance to pitting and crevice corrosion . It is suited for use in aggressive environments . It also has good resistance to stress corrosion cracking in chloride and sour environments . And it has good resistance to erosion corrosion and corrosion fatigue .
   Super duplex stainless such as duplex is a mixed microstructure of austenite and ferrite which has improved strength over ferritic and austenitic steel grades . The main difference is super duplex has a higher molybdenum and chromium content which gives the material greater corrosion resistance .
   Super duplex has the same benefits as its counterpart - it has lower production costs when compared with similar ferritic and austenitic grades and due to the materials increased tensile and yield strength , in many cases this gives the purchaser the welcomed option of purchasing smaller thicknesses without the need to compromise on quality and performance .



3 / 4 Inch UNS S32750 / S32760 Duplex Stainless Steel Tubing With Cold Rolled





ASTM A790 Standard
2205 / S32750 Elements
(C) Carbon , max : 0.030
(Mn) Manganese , max : 1.20
(P) Phosphorus , max : 0.035
(S) Sulfur , max : 0.020
(Si) Silicon , max : 0.80
(Ni) Nickel : 6.0 - 8.0
(Cr) Chromium : 24.0 - 26.0
(Mo) Molybdenum : 3.0 - 5.0
(Fe) Iron : --
(Cu) Copper , max : 0.5
(N) Nitrogen : 0.24 - 0.32



Specifications :



DN NPS(Inch) D(mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.30 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.70 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.10 - 1.65 2.31 2.31 2.31 3.20 3.20 3.20 - -
15 1/2 21.30 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.70 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.40 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
