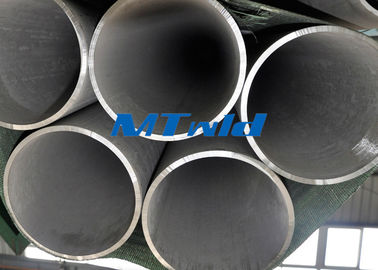

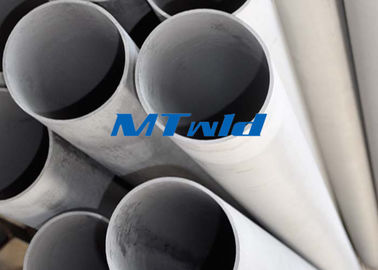

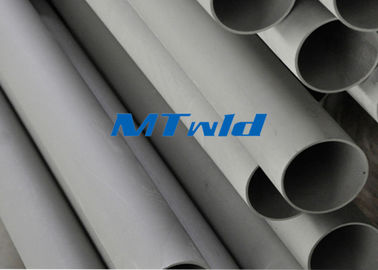

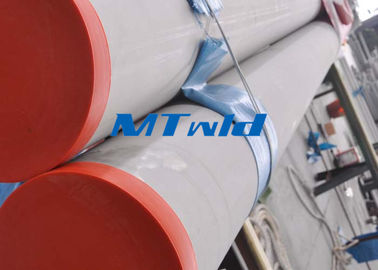

ASTM A789 / ASME SA789 F51 / F53 Duplex Steel Welded Pipe For Transportation

ASTM A789 / ASME SA789 F51 / F53 Duplex Steel Welded Pipe For Transportation
ASTM A789 / ASME SA789 F51 / F53 Duplex Steel Welded Pipe For Transportation ASTM A789 / ASME SA789 F51 / F53 Duplex Steel Welded Pipe For Transportation ASTM A789 / ASME SA789 F51 / F53 Duplex Steel Welded Pipe For Transportation ASTM A789 / ASME SA789 F51 / F53 Duplex Steel Welded Pipe For Transportation

ASTM A789 / ASME SA789 F51 / F53 Duplex Steel Welded Pipe For Transportation

جزئیات محصول:
Place of Origin: CHINA
نام تجاری: MTSCO
گواهی: ISO 9001 & PED & AD2000
Model Number: MTSCOSSSP37
پرداخت:
Minimum Order Quantity: negotiable
قیمت: 2400-12000USD/TON
Packaging Details: Plywood Case / Bundles
Delivery Time: 30 Days
Payment Terms: T / T ; L / C, MoneyGram
Supply Ability: 500 Tons / Month
اکنون تماس بگیرید

اطلاعات تکمیلی
Material: 300 Series Stainless Steel Type: Welded
NDT: Eddy current or Hydraulic test Inspection: 100%
Surface: Pickling & Annealing Process: ERW , EFW Etc

توضیحات محصول

ASTM A789 / ASME SA789 F51 / F53 Duplex Steel Welded Pipe For Transportation



1. Material Grade: S32205 , S31803 , S32304 , S32750, F51 , F53 , 2205 , 2507 etc

2. Outer Diameter: 10.3mm-1219mm

Wall Thickness : 1.24mm-59.54mm

3. Length: Normally fixed length 6m , can as per customer’s requirement

4. Standard: ASTM A312 ; ASTM A358 ; ASTM A789 ; ASTM A790 ect .

5. Process Method: ERW , EFW etc



UNS Designation C Si Mn P S Cr Ni Mo N Cu
max max max max max
S31803 0.03 1 2 0.03 0.02 21.0 - 23.0 4.5 - 6.5 2.5 - 3.5 0.08 - 0.20 -
S32205 0.03 1 2 0.03 0.02 22.0 - 23.0 4.5 - 6.5 3.0 - 3.5 0.14 - 0.20 -
S32750 0.03 0.8 1.2 0.035 0.02 24.0 - 26.0 6.0 - 8.0 3.0 - 5.0 0.24 - 0.32 0.5 max
S32760 0.05 1 1 0.03 0.01 24.0 - 26.0 6.0 - 8.0 3.0 - 4.0 0.20 - 0.30 0.50 -1.00





  MTSCO has been dedicated to producing welded pipe and tube since 2003 , owning complete producing technology and abundant managing experience . And we have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .

   MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes ,  seamless coiled tubing etc . In order to facilitate customers, we have welded pipes and tubes too. MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement . According to standard very strictly , pipes which produced by us always have correct OD and WT tolerance .





Test :



1 . X-ray , Size test , Length test

2 . Chemical Analysis ( Photoelectric Emission Spectroscopic ) etc



Specifications :



DN NPS(Inch) D(mm) SCH5S SCH10S SCH10 SCH20 SCH30 STD SCH40 SCH60 SCH80 XS
300 12 323.9 3.96 4.57 - 6.35 8.38 9.53 10.31 14.27 17.48 12.7
350 14 355.6 3.96 4.78 6.35 7.92 9.53 9.53 11.13 15.09 19.05 12.7
400 16 406.4 4.19 4.78 6.35 7.92 9.53 9.53 12.7 16.66 21.44 12.7
450 18 457.2 4.19 4.78 6.35 7.92 11.13 9.53 14.27 19.05 23.83 12.7
500 20 508 4.78 5.54 6.35 9.53 12.7 9.53 15.09 20.62 26.19 12.7
550 22 559 4.78 5.54 6.35 9.53 12.7 9.53 - 22.23 28.58 12.7
600 24 610 5.54 6.35 6.35 9.53 14.27 9.53 17.48 24.61 30.96 12.7
650 26 660 - - 7.92 12.7 - 9.53 - - - 12.7
700 28 711 - - 7.92 12.7 15.88 9.53 - - - 12.7
750 30 762 6.35 7.92 7.92 12.7 15.88 9.53 - - - 12.7
800 32 813 - - 7.92 12.7 15.88 9.53 17.48 - - 12.7
850 34 864 - - 7.92 12.7 15.88 9.53 17.48 - - 12.7
900 36 914 - - 7.92 12.7 15.88 9.53 19.05 - - 12.7
950 38 965 - - - - - 9.53 - - - 12.7
1000 40 1016 - - - - - 9.53 - - - 12.7
1050 42 1067 - - - - - 9.53 - - - 12.7
1100 44 1118 - - - - - 9.53 - - - 12.7
1150 46 1168 - - - - - 9.53 - - - 12.7
1200 48 1219 - - - - - 9.53 - - - 12.7



ASTM A789 / ASME SA789 F51 / F53 Duplex Steel Welded Pipe For Transportation 0
