S30400 / S30403 ASME SA269 فولاد ضد زنگ جوش داده شده لوله سیم پیچ فوق طولانی برای صنعت کابل
تماس با شخص : Cherry Gao
شماره تلفن : +86 573 82717867
WhatsApp : +8613857354118
| Minimum Order Quantity : | negotiable | قیمت : | 5500-10000USD/TON |
|---|---|---|---|
| Packaging Details : | Iron Case / Plywood Case | Delivery Time : | 30 Days |
| Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
| Place of Origin: | CHINA | نام تجاری: | MTSCO |
|---|---|---|---|
| گواهی: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOSSCT41 |
|
اطلاعات تکمیلی |
|||
| Material: | 304 / 304L 1.4301 / 1.4306 | Standard: | ASTM A269 / ASTM A213 Dual Standards Etc |
|---|---|---|---|
| Delivery Condition: | Soft / Hard | Type: | welded |
| Surface: | Bright Annealed / Pickled | Feature: | flame retardant |
| برجسته کردن: | ,,seamless stainless steel pipe |
||
توضیحات محصول
ASTM A213 304 / 304L 1.4301 / 1.4306 Stainless Steel Welded Multi-core Coiled Tube
Where the multi-core coiled tubing used ?
Mtsco’ s multi-core tubes are used for pneumatic and hydraulic remote control, measuring and monitoring systems. materials are ASTM TP316/ 316L, TP304/304L.
Chemical Composition
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
| TP304/1.4301 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
| TP304L/1.4307 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP316/1.4401 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
| TP316L/1.4404 | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Ordering code number |
Tube size (O.D x Thickness x Core) |
Overall Diameter (.mm) |
Sheath Thickness (.mm) |
Bundle Weight (kg/M) |
Max Pressure (Bar) |
| HTD-1 | 6×1.0×1 | 8 | 1.0 | 0.15 |
Working:180Bar
Test:270Bar |
| HTD-2 | 6×1.0×2 | 20 | 2.0 | 0.60 | |
| HTD-3 | 6×1.0×3 | 21 | 2.0 | 0.75 | |
| HTD-4 | 6×1.0×4 | 24 | 2.0 | 0.82 | |
| HTD-5 | 6×1.0×5 | 25 | 2.0 | 0.90 | |
| HTD-6 | 6×1.0×6 | 27 | 2.0 | 1.04 | |
| HTD-7 | 6×1.0×7 | 27 | 2.0 | 1.15 | |
| HTD-8 | 6×1.0×8 | 32 | 2.2 | 1.40 | |
| HTD-9 | 8×1.0×1 | 10 | 1.0 | 0.28 | |
| HTD-10 | 8×1.0×2 | 24 | 1.8 | 0.89 | |
| HTD-11 | 8×1.0×3 | 26 | 2.0 | 1.12 | |
| HTD-12 | 8×1.0×4 | 28 | 2.0 | 1.33 | |
| HTD-13 | 8×1.0×5 | 31 | 2.0 | 1.67 | |
| HTD-14 | 8×1.0×6 | 34 | 2.0 | 2.00 | |
| HTD-15 | 8×1.0×7 | 34 | 2.0 | 2.15 | |
| HTD-16 | 8×1.0×8 | 40 | 2.2 | 2.60 | |
| HTD-17 | 10×1.0×1 | 13 | 1.0 | 0.34 | |
| HTD-18 | 10×1.0×2 | 28 | 1.8 | 1.18 | |
| HTD-19 | 10×1.0×3 | 31 | 2.0 | 1.60 | |
| HTD-20 | 10×1.0×4 | 34 | 2.0 | 1.97 | |
| HTD-21 | 10×1.0×5 | 37 | 2.0 | 2.20 | |
| HTD-22 | 10×1.0×6 | 40 | 2.0 | 2.40 | |
| HTD-23 | 10×1.0×7 | 40 | 2.0 | 2.52 | |
| HTD-24 | 10×1.0×8 | 48 | 2.5 | 3.20 | |
| HTD-25 | 12×1.0×1 | 14 | 1.0 | 0.41 | |
| HTD-26 | 12×1.0×2 | 34 | 2.0 | 1.35 | |
| HTD-27 | 12×1.0×3 | 36 | 2.0 | 1.96 | |
| HTD-28 | 12×1.0×4 | 39 | 2.0 | 2.37 | |
| HTD-29 | 12×1.0×5 | 43 | 2.0 | 2.70 | |
| HTD-30 | 12×1.0×6 | 47 | 2.0 | 3.00 | |
| HTD-31 | 12×1.0×7 | 47 | 2.0 | 3.14 | |
| HTD-32 | 12×1.0×8 | 55 | 2.5 | 3.90 |

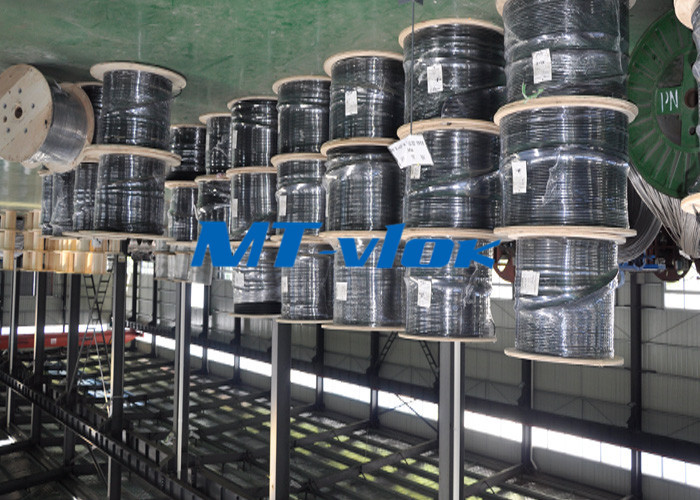

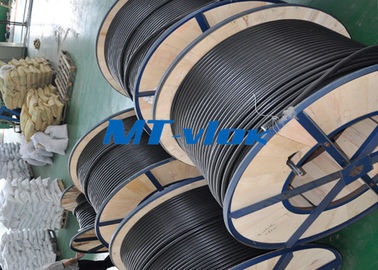

The multi-core tube consists of one to nine stainless steel tubes laid up spirally inside an extruded outer PVC sheath. For easy identification and protection purposes each individual tube is PVC sheathed in a different color. The extruded outer sheath is made of oil and seawater resistant, weatherproof, flame retardant, corrosion and acid resistant PVC. The multi-core tube (outer sheath) is continuously marked at every one meter throughout the entire length for easy installation. Heat shrinkable products provide complete water sealing, abrasion and corrosion protection under all conditions.
