لوله بدون درز فولادی ضد زنگ 310S ASTM A269 برای مبدل حرارتی
تماس با شخص : Cherry Gao
شماره تلفن : +86 573 82717867
WhatsApp : +8613857354118
| Minimum Order Quantity : | negotiable | قیمت : | 4300-9800USD/TON |
|---|---|---|---|
| Packaging Details : | Iron Case | Delivery Time : | 30 Days |
| Payment Terms : | T / T ; L / C | Supply Ability : | 300 Tons / Month |
| Place of Origin: | CHINA | نام تجاری: | MTSCO |
|---|---|---|---|
| گواهی: | ISO 9001 & PED & AD2000 | Model Number: | MTSCOSSST31 |
|
اطلاعات تکمیلی |
|||
| Material: | Stainless Steel 300 Series | Standard: | EN 10216-5 ; ASTM A213 / SA213 ; ASTM A269 / SA269 Etc |
|---|---|---|---|
| Surface: | Annealing | NDT: | Eddy Current Or Hydraulic Test |
| Type: | Seamless | Delivery Condition: | Soft / Hard |
| برجسته کردن: | Stainless Steel Seamless Tubing,ss Seamless Tubing,ss Seamless Tubing |
||
توضیحات محصول

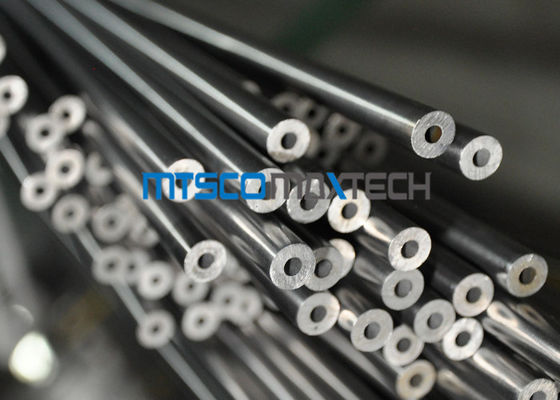

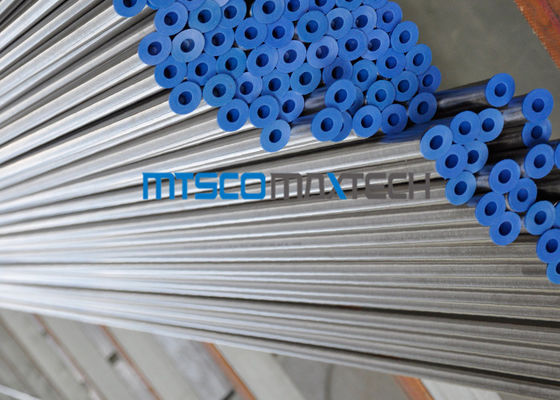

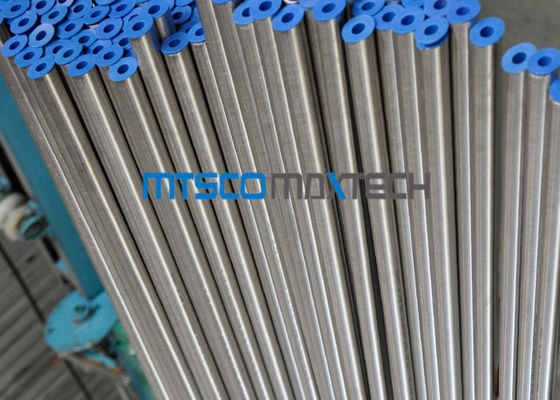

TP304L / 1.4306 Stainless Steel Seamless Tube With Bright Annealed Surface In Oil And Gas Industry
|
Item |
Description |
|
|
Basic Information |
Material Grade |
TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc |
|
Outer Diameter |
3.18-101.6mm |
|
|
Wall Thickness |
0.5-20mm |
|
|
Length |
Normally fixed length 6m , can as per customer’s requirement |
|
|
Standard |
ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect . |
|
|
Process Method |
Cold Drawn or Cold Rolled |
|
Application
a) For fluid & gas transport
b) Structure & machining
c) Petrochemical
d) Environmental protection
e) Electricity
f) Instrument industry etc
Advantages
a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
Price Item: FOB , CFR , CIF or as negotiation
ASTM A213 / A213M Chemical Composition :
| Elements | 304L(wt%) S30403 | 304(wt%) S30400 | 316L (wt%) S31603 | 316 (wt%) S31600 |
| (C) Carbon, max | 0.035 | 0.08 | 0.035 | 0.08 |
| (Mn) Manganese, max | 2 | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
| (Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Iron | Bal. | Bal. | Bal. | Bal. |
| (Cu) Copper | N/A | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A | N/A |
| Birmingham Wire Gauge BWG | |||||
| Wall Thickness | Wall Thickness | ||||
| BWG | IN | MM | BWG | IN | MM |
| 0 | 0.340 | 8.64 | 19 | 0.042 | 1.07 |
| 1 | 0.300 | 7.62 | 20 | 0.035 | 0.89 |
| 2 | 0.284 | 7.21 | 21 | 0.032 | 0.81 |
| 3 | 0.259 | 6.58 | 22 | 0.028 | 0.71 |
| 4 | 0.238 | 6.05 | 23 | 0.025 | 0.64 |
| 5 | 0.220 | 5.59 | 24 | 0.022 | 0.56 |
| 6 | 0.203 | 5.16 | 25 | 0.020 | 0.51 |
| 7 | 0.180 | 4.57 | 26 | 0.018 | 0.46 |
| 8 | 0.165 | 4.19 | 27 | 0.016 | 0.41 |
| 9 | 0.148 | 3.76 | 28 | 0.014 | 0.36 |
| 10 | 0.134 | 3.40 | 29 | 0.013 | 0.33 |
| 11 | 0.120 | 3.05 | 30 | 0.012 | 0.30 |
| 12 | 0.109 | 2.77 | 31 | 0.010 | 0.25 |
| 13 | 0.095 | 2.41 | 32 | 0.009 | 0.23 |
| 14 | 0.083 | 2.11 | 33 | 0.008 | 0.20 |
| 15 | 0.072 | 1.83 | 34 | 0.007 | 0.18 |
| 16 | 0.065 | 1.65 | 35 | 0.005 | 0.13 |
| 17 | 0.058 | 1.47 | 36 | 0.004 | 0.10 |
| 18 | 0.049 | 1.24 | |||
